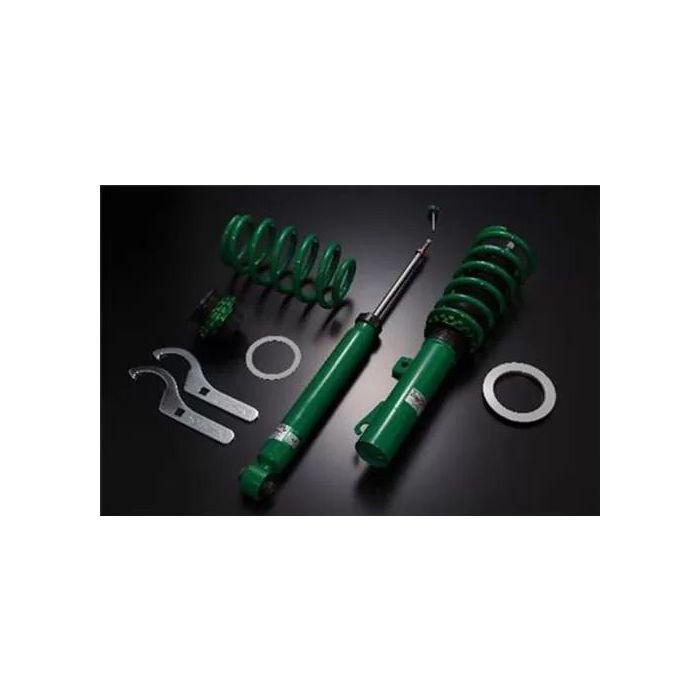

Tein 12-13 Honda Civic Si (FB6/FG4) Street Advance Z Coilovers - GSHC0-9UAS2

$655.50
sku
teinGSHC0-9UAS2
Free Shipping Banner

This Item has limited quantity. Request Quote for item availability.

Stock is low or unavailable.
Please Request Quote for stock status
Upgrade your Honda Civic's performance with the TEIN STREET ADVANCE Z Coilover Kit. Designed for the 2012-2015 4DR/4CYL models (excluding Si), this kit offers: - **Enhanced Handling**: Experience improved cornering and stability. - **Adjustable Ride Height**: Customize your vehicle's stance to suit your style. - **Durable Construction**: Built to withstand daily driving and spirited runs. - **Comfortable Ride**: Enjoy a smooth drive with advanced damping technology. - **Easy Installation**: Designed for a straightforward setup. Transform your Civic's driving dynamics with precision engineering and superior quality.

The TEIN STREET ADVANCE Z damper is the evolution of the popular Super Street coilover. Developed to provide a sporty ride feeling and aggressive stance, along with wide-range damping force adjustment using our new Advance Needle technology, giving the driver a much more noticeable feel in damping force change. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Vehicle ride height is adjustable via the ZT coated threaded sleeve. The unique ZT Coating surface treatment on the ride height adjustment thread is abrasion resistant against gravel/debris, and further enhances its corrosion resistance. Each STREET ADVANCE Z has updated internal components and external coatings increase durability and product life. STREET ADVANCE Z dampers are great for daily driving and spirited driving for all types of drivers.

Front Specifications:

  • Damping Force Adjustment: Y
  • Full-Length Ride-Height Adjustable: N
  • Upper Mount: OEM
  • Recommended Ride Height (mm): -40
  • Recommended Ride Height (inch): -1.6
  • Ride Height Adjustable Range:
    • Max Low (mm): -77
    • Max Low (inch): -3
    • Max High (mm): -34
    • Max High (inch): -1.3
    • Recommended Low (mm): -50
    • Recommended Low (inch): -2
    • Recommended High (mm): -35
    • Recommended High (inch): -1.4
  • Spring
    • Rate (kgf/mm): 6
    • Rate (lbs/in): 336
    • SP PART#S8B14-13060
    • Free Length (mm): 220
Rear Specifications:
  • Damping Force Adjustment: Y
  • Full-Length Ride-Height Adjustable: N
  • Upper Mount: OEM
  • Recommended Ride Height (mm): -35
  • Recommended Ride Height (inch): -1.4
  • Ride Height Adjustable Range:
    • Max Low (mm): -52
    • Max Low (inch): -2
    • Max High (mm): -6
    • Max High (inch): -0.2
    • Recommended Low (mm): -45
    • Recommended Low (inch): -1.8
    • Recommended High (mm): -25
    • Recommended High (inch): -1
  • Spring:
    • Rate (kgf/mm): 7
    • Rate (lbs/in): 392
    • SP PART#S6HC1-13070
    • Free Length (mm): 165
Fitment:
  • Year: 2012-2015
  • Make: Honda
  • Model: Civic
  • Trim: 4DR/4CYL ExC. Si
  • Drivetrain: FF
  • Chassis: FB2
  • Motor Size: 1800
  • Vehicle Region: USA
Notes:
  • 4Dr/4Cyl. Non Si Model. A Conversion Kit (Sps12-P9043) Is Required. Ft: Oe Dust Boot Needs To Be Modified. Rr: Oe Spring Insulator Needs To Be Modified.
Features:
  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-Way Damping Adjustable with over 200% increase in damping force change.
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • One Year Warranty Against Manufacturer s Defects
  • EDFC Compatible
