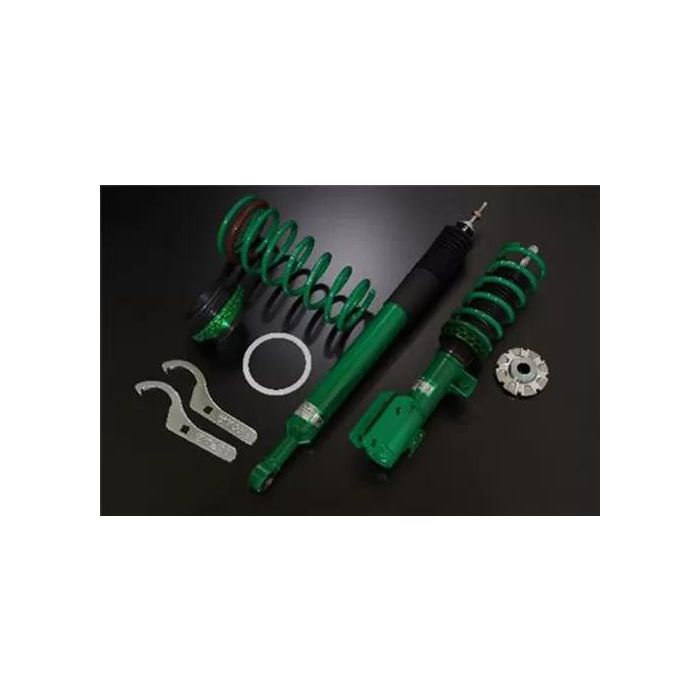

Tein 92-02 Honda Prelude (BB1/BB2/BB6) Street Basis Z Coilovers - GSH92-8USS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -45
• Recommended Ride Height (inch): -1.8
• Ride Height Adjustable Range:
  • Max Low (mm): -101
  • Max Low (inch): -4
  • Max High (mm): -24
  • Max High (inch): -0.9
  • Recommended Low (mm): -55
  • Recommended Low (inch): -2.2
  • Recommended High (mm): -35
  • Recommended High (inch): -1.4
• Spring
  • Rate (kgf/mm): 10
  • Rate (lbs/in): 560
  • SP PART#JA100-1B230-3
  • Free Length (mm): 230
  • I.D. (mm): ID71

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -45
• Recommended Ride Height (inch): -1.8
• Ride Height Adjustable Range:
  • Max Low (mm): -91
  • Max Low (inch): -3.6
  • Max High (mm): -19
  • Max High (inch): -0.7
  • Recommended Low (mm): -55
  • Recommended Low (inch): -2.2
  • Recommended High (mm): -35
  • Recommended High (inch): -1.4
• Spring:
• Rate (kgf/mm): 4
• Rate (lbs/in): 224
• SP PART#SC040-13250
• Free Length (mm): 250
• I.D. (mm): ID70

• Year: 1997-2002
• Make: Honda
• Model: Prelude
• Drivetrain: FF
• Chassis: BB6
• Motor Size: 2200
• Vehicle Region: USA

• 2Dr/4Cyl/Incl. 4Ws

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
