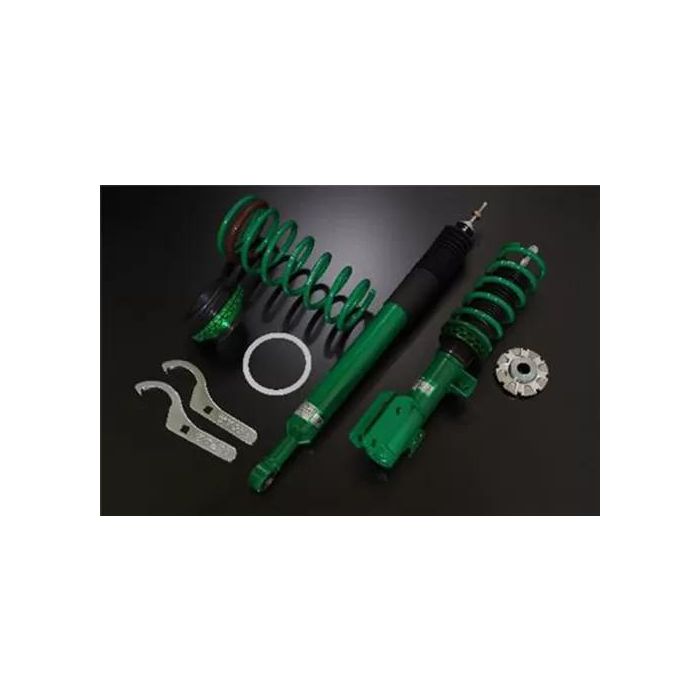

Tein 04-11 Mazda RX-8 (SE3P) Street Basis Z Coilovers - GSM56-81SS2
$513.00
sku
teinGSM56-81SS2
We have 15+ in stock
Upgrade your Mazda RX-8's performance with the TEIN STREET BASIS Z Coilover Kit. Designed for the 2004-2011 SE3P FR models, this kit offers:
- Enhanced handling and stability
- Adjustable ride height for a customized look
- Durable construction for long-lasting performance
- Smooth and comfortable ride quality
- Easy installation with no modifications needed
Transform your driving experience with precision and style.
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -40
- Recommended Ride Height (inch): -1.6
- Ride Height Adjustable Range:
- Max Low (mm): -95
- Max Low (inch): -3.7
- Max High (mm): -28
- Max High (inch): -1.1
- Recommended Low (mm): -50
- Recommended Low (inch): -2
- Recommended High (mm): -30
- Recommended High (inch): -1.2
- Spring
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#JB060-1C230-3
- Free Length (mm): 230
- I.D. (mm): ID70 - ID100
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -25
- Recommended Ride Height (inch): -1
- Ride Height Adjustable Range:
- Max Low (mm): -60
- Max Low (inch): -2.4
- Max High (mm): -15
- Max High (inch): -0.6
- Recommended Low (mm): -35
- Recommended Low (inch): -1.4
- Recommended High (mm): -15
- Recommended High (inch): -0.6
- Spring:
- Rate (kgf/mm): 4
- Rate (lbs/in): 224
- SP PART#BH040-13225
- Free Length (mm): 225
- I.D. (mm): ID70 - ID100
- Year: 2004-2011
- Make: Mazda
- Model: RX-8
- Drivetrain: FR
- Chassis: SE3P
- Motor Size: 1308
- Vehicle Region: USA
- 2Dr/2Rotor
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
| Brand | TEIN |
|---|
