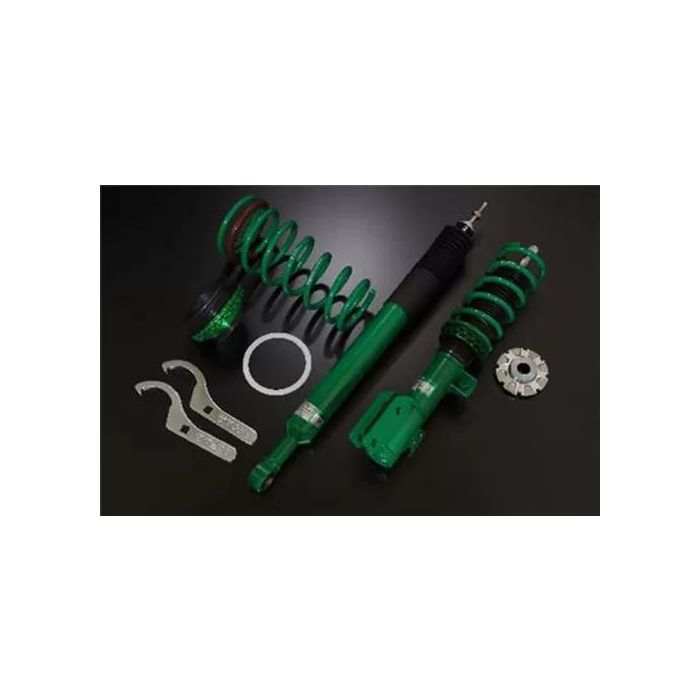

Tein 95-98 Nissan 240SX (S14) Street Basis Z Coilovers - GSP06-8USS2
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -45
- Recommended Ride Height (inch): -1.8
- Ride Height Adjustable Range:
- Max Low (mm): -85
- Max Low (inch): -3.3
- Max High (mm): -33
- Max High (inch): -1.3
- Recommended Low (mm): -55
- Recommended Low (inch): -2.2
- Recommended High (mm): -35
- Recommended High (inch): -1.4
- Spring
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#SB060-13200
- Free Length (mm): 200
- I.D. (mm): ID70
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -74
- Max Low (inch): -2.9
- Max High (mm): -9
- Max High (inch): -0.4
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 4
- Rate (lbs/in): 224
- SP PART#S8P07-13040
- Free Length (mm): 250
- Year: 1995-1998
- Make: Nissan
- Model: 240SX
- Drivetrain: FR
- Chassis: S14
- Motor Size: 2400
- Vehicle Region: USA
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -45
- Recommended Ride Height (inch): -1.8
- Ride Height Adjustable Range:
- Max Low (mm): -85
- Max Low (inch): -3.3
- Max High (mm): -33
- Max High (inch): -1.3
- Recommended Low (mm): -55
- Recommended Low (inch): -2.2
- Recommended High (mm): -35
- Recommended High (inch): -1.4
- Spring
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#SB060-13200
- Free Length (mm): 200
- I.D. (mm): ID70
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -74
- Max Low (inch): -2.9
- Max High (mm): -9
- Max High (inch): -0.4
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 4
- Rate (lbs/in): 224
- SP PART#S8P07-13040
- Free Length (mm): 250
- Year: 1995-1998
- Make: Nissan
- Model: 240SX
- Drivetrain: FR
- Chassis: S14
- Motor Size: 2400
- Vehicle Region: USA
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
| Brand | TEIN |
|---|
