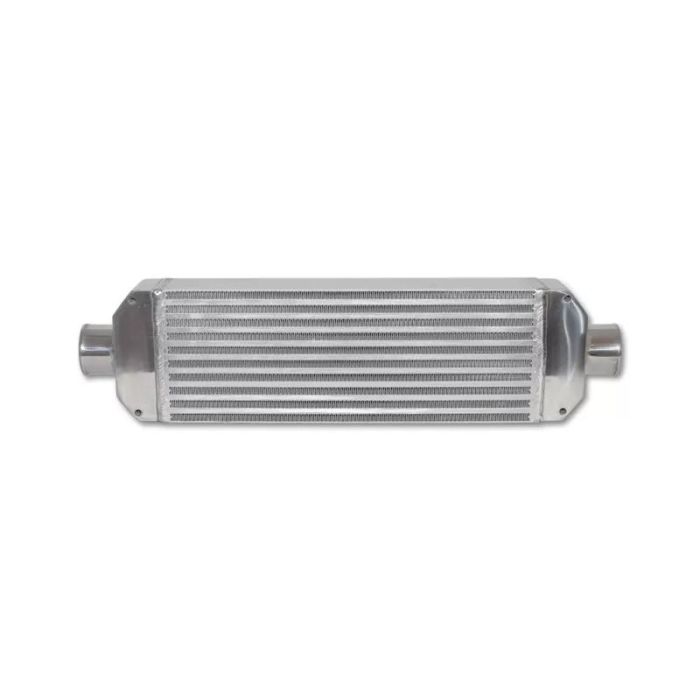

Vibrant Air-to-Air IC Assy complete w/ end tanks core size 18in Wx6.5in Hx3.25in thick 2.5in in/out - 12800

Vibrant Intercooler Assemblies are all designed in house, and feature the same bar and plate construction as well as Louvered fin design on ambient air path with offset fin design on charge air path that is found in Vibrant's lineup of Intercooler Cores. Each assembly also features cast aluminum tig welded end tanks, with a 2.5" or 3" inlet/outlet depending on intercooler size. These preassembled intercoolers each include mounting brackets and hardware for ease of installation and are pressure tested to ensure a leak free assembly.

Features:

• Approx. Flow Rate for this intercooler: 520 CFM at 1.5PSi pressure drop
• Approx. HP Rating for this intercooler: 350 HP
• Inlet/ Outlet: 2.5"
• Inlet/Outlet Neck Location: Center
• Inlet/Outlet Length from Bottom: 3.25"
• Inlet/Outlet Length from Top: 3.25"
• Inlet/ Outlet Length: 1.75"
• Core Thickness: 3.25"
• Core Width: 18"
• Height: 6.5"
• Warranty Policy: One Year Limited Warranty
• Material: 6061 Aluminum

• Images used for marketing only actual product may vary!
