Wiseco Toyota 4AG 4V DOME +5.9cc (6506M815 Piston Shelf Stock Kit - K506M815
$722.99
sku
wisK506M815
Stock is low or unavailable.
Please Request Quote for stock status
Please Request Quote for stock status

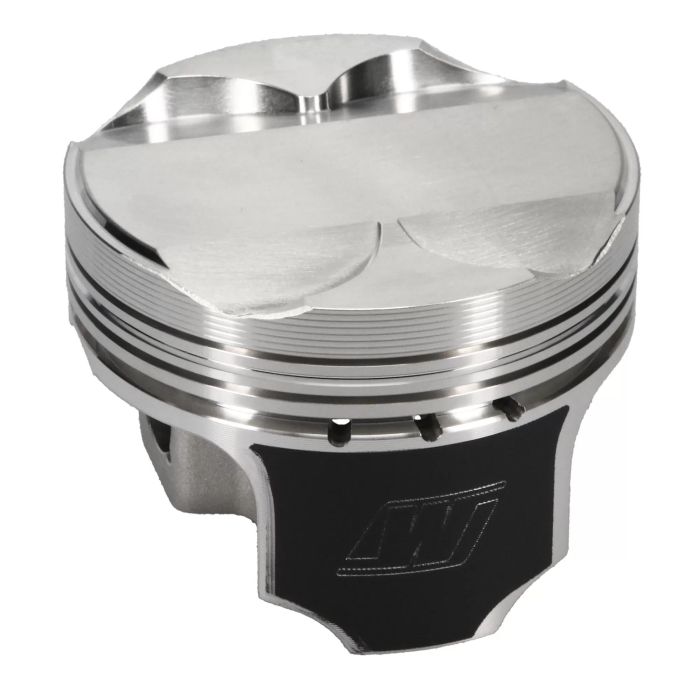

Upgrade your engine's performance with the Wiesco Professional Toyota 4AG Piston Set. Designed for precision and durability, this set includes four pistons with an 81.50 mm bore and 30.68 mm compression height.
- High-strength construction for enhanced durability
- Optimized for superior performance and efficiency
- Perfect fit for Toyota 4AG engines
- Lightweight design reduces engine stress
- 5.00 CC dome volume for improved combustion
Achieve peak performance and reliability with this top-quality piston set.
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.
Features:
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
- Forced pin oiling
- Designed and built to withstand heavy to severe duty performance applications
- Product Series: Professional
- Bore Diameter: 81.50 MM
- Compression Height: 30.68 MM
- Piston Volume: 5.00 CC
- Piston Material: 4032
- Skirt Coating: Yes
- Forging Type: Full Round
- Piston Quantity: 4
- Ring Set Included: Yes
- Top Compression Ring Thickness: 1.0 MM
- Second Compression Ring Thickness: 1.2 MM
- Oil Ring Thickness: 2.8 MM
- Wrist Pin Included: Yes
- Wrist Pin Material: 5115
- Wrist Pin Outer Diameter: 0.787 IN
| Brand | Wiseco |
|---|---|
| upc | 00193564074737 |
