Wilwood Adjustable Balance Bar Brake w/ Clutch Combo - Reverse Mount - 5.5-6.25:1 - 340-16385
- Wilwood Adjustable Balance Bar Brake w/ Clutch Combo - Reverse Mount - 5.5-6.25:1 - 340-16385 delivers precise brake modulation for enhanced vehicle control and safety.
- Optimize your braking system with this reverse mount setup, designed for smooth clutch engagement and improved driving performance.
- Perfect for racing enthusiasts seeking adjustable balance bar brakes that boost responsiveness and reduce stopping distances effectively.
- Upgrade your automotive brake and clutch combo today to experience superior handling and confidence on every drive—add to cart now.

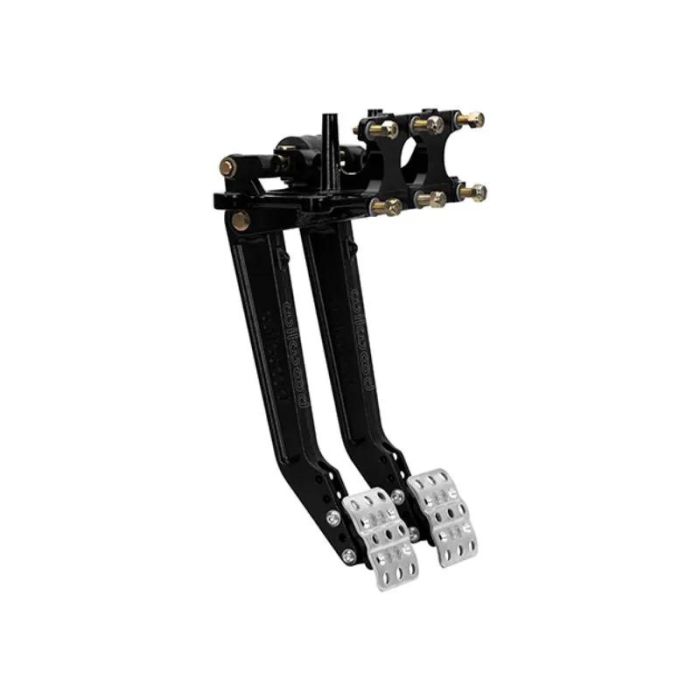

Adjustable ratio balance bar brake pedal and clutch pedal combo, in a reverse swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms.
The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.
Features:
- Material Aluminum
- Finish Black E-coat
- Mount Loc Swing
- Mount Facing Reverse
- Balance Bar Yes
- Pedal 1 Ratio 5.5-6.25:1
- Pedal 2 Ratio 5.5-6.25:1
- UPC 889545100495
| Brand | Wilwood |
|---|---|
| upc | 889545100495 |
